COMEUP spil 12V með 1360Kg þolir 1360Kg tog átak. Er með 4,8mm stálvír. Innsiglaður permanent magnet mótor. 3 stiga plánetu gír
COMEUP ATV Winch Cub 3, 12V, 3000lbs, Steel rope
ATV electric winch, 3000lbs (1361 kg).
Features:
3,000 lb (1,361 kg) line pull
Power in and power out
Winch drum centred avoids the interference of rope and provides streamlined appearance
Mechanical load holding and dynamic brake for 100% braking
High efficiency, low amp draw and sealed permanent magnet motor
Full metal 3 stage planetary gear train for greater pulling force
Sliding pin and ring gear clutch for rapid wire rope payout
Weather sealed contactor gives better water proof and lower amp. draw
E/e marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*01
Specifications / part numbers:
Winch Part Number: PN 123561
Maximum line pull: 3,000 lb (1,361 kg)
Motor: Permanent magnet 800w/1.0hp 12V DC motor
Gear train: 3-stage planetary gears
Gear ratio: 138.5:1
Brake: Mechanical & dynamic
Clutch: Sliding pin and ring gear
Control: Handlebar rocker switch

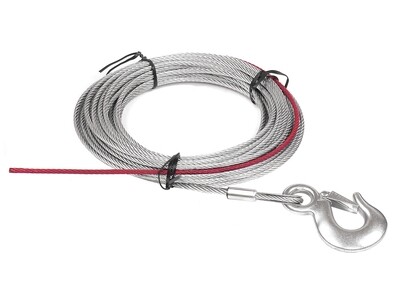

Wire rope: 4.8 mm x 15.2 m (3/16" x 50'), galvanized aircraft A7 x 19
Winch construction: Aluminum die cast housings and drum
Rotation of winch: Wire rope shall be under-wound orientation only
Drum size: 55 x 75 mm (2.2" x 3")
Mounting bolts pattern: 76 x 124 mm (3"x 4.9")
Line pull and rope capacity:
Layer of Wire Rope
Pull by layer kg / lbs
Total rope m / ft
1st layer
1,361 / 3,000
2.8 / 9.3
2nd layer
1,173 / 2,585
6.1 / 20.1
3rd layer
1,030 / 2,271
9.9 / 32.5
4th layer
918 / 2,025
14.1 / 46.3
5th layer
829 / 1,827
15.2 / 50
Line speed and amp. draw (1st layer of rope on the drum):
Line pull, kg / lbs
Line speed, mpm / fpm
Amp. draw, A
No Load
6.8 / 22.2
20
227 / 500
5.7 / 18.7
45
454 / 1,000
4.8 / 15.6
75
680 / 1,500
3.8 / 12.5
105
907 / 2,000
3.0 / 9.8
140
1,134 / 2,500
2.5 / 8.0
180
1,361 / 3,000
2.0 / 6.7
230
Warning: * The winch is not intended to be used in any manner for the movement or lifting of persons. * The rated line pull shown is based on the first layer of rope on the drum. The rope winding on the drum shall remain 5 wraps from the drum.
